Transistor Tester, Transistor Meter Multifunctional Capacitor Tester with 2.8-inch Color TFT Screen, DSO-TC4 Upgraded Version 3 in 1 Digital 10MHz 48Ms/s Electronic Component Tester

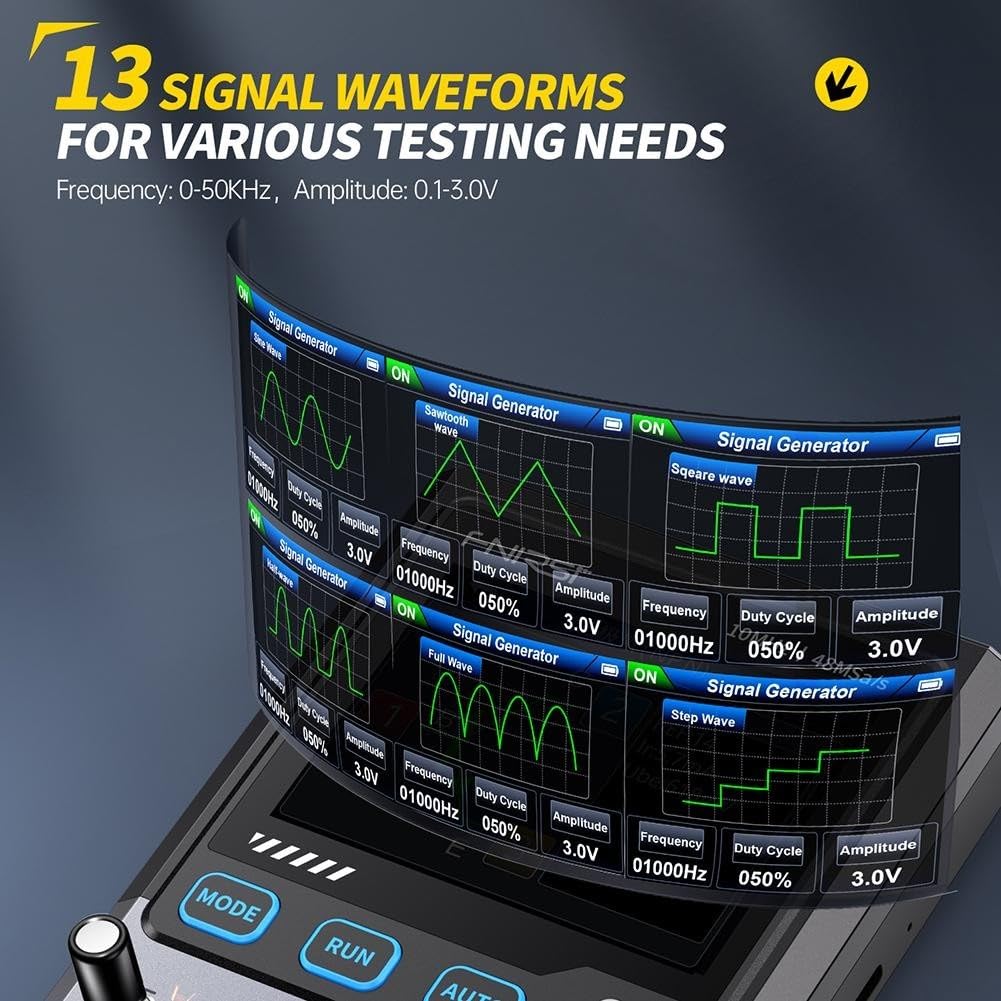

Features:The main features of this product are: Sampling rate: 48 MSa/s Analog bandwidth: 10MHz Voltage for PROTECTION: ±400V Waveform storage: supports saving and viewing screenshots for easy data analysis Supports 13 waveform outputs, with a frequency range of 0 to 50KHz and an adjustable output voltage of 0 to 3V. The output parameters (frequency, amplitude, duty cycle) are adjustable to flexibly meet various needs. High efficiency: Automatically identify the type and pin arrangement of the components being tested, simplify the operation process, and improve test efficiency. A wide variety: Detect and analyze the performance and characteristics of semiconductor components such as transistors, diodes, triodes, field effect transistors (FETs), etc. Equipped with a 2.8-inch color TFT screen, the image is clear and intuitive Built-in high-capacity rechargeable lithium battery (1500 mAh), with a standby time of 4 hours Small and light, suitable for mobile use.3.1 ParametersReal-time sampling rate: 48MSa/sAnalog bandwidth: 10 MHzInput impedance: 1MΩCoupling mode: AC/DCTest voltage range: 1:1 probe: 80Vpp (+40V)Probe 10:1: 800 Vpp (+400 V)Vertical sensitivity: 10mV/div~10V/div (X1 range)Vertical displacement: adjustable, with indicationTime base range: 50ns~20smode: automatic/normal/singleTrigger type: rising edge, falling edgeTrigger level: adjustable, with indicationWaveform freeze: yes (HOLD function)Automatic measurement: maximum, minimum, average, RMS, Vpp, frequency, period, duty cycle3.2 ParametersTransistor test: supportDiode test: forward voltage drop <5VZener diode test: 0.01~4.5VField effect transistor (FET) Test: JFET, IGBT, MIOSTETUnidirectional thyristor test: trigger voltage <5V, gate levelBidirectional SCR test: trigger current <6mACapacitance test: 25pF~1000μFResistance test: 0.01Ω~50MΩInductance test: 10μH~1000μH3.3 ParametersOutput waveform Support 13 waveform outputsWaveform frequency 0-50KHzSquare wave duty cycle 0-100%Waveform amplitude 0.1V-3.0VSpecifications:Model: DSO-TC4Part name: DSO-TC4 three-in-one oscilloscopeMaterial: ABSColor: blackLanguage: Chinese, English, German, Portuguese, Spanish, vernacular, PyccкиDisplay: 2.8-inch TFT color screenBacklight: adjustable brightnessPower supply: TYPE-C (5V/1A).Battery: 3.7V/1500mAhsize: ≈90x142x27.5mmProduct weight: ≈186gPackage contents:Host DSO-TC4 *1Test hook *3P6100 probe *1for Alligator clip probe *1Type-C *1User manual *1

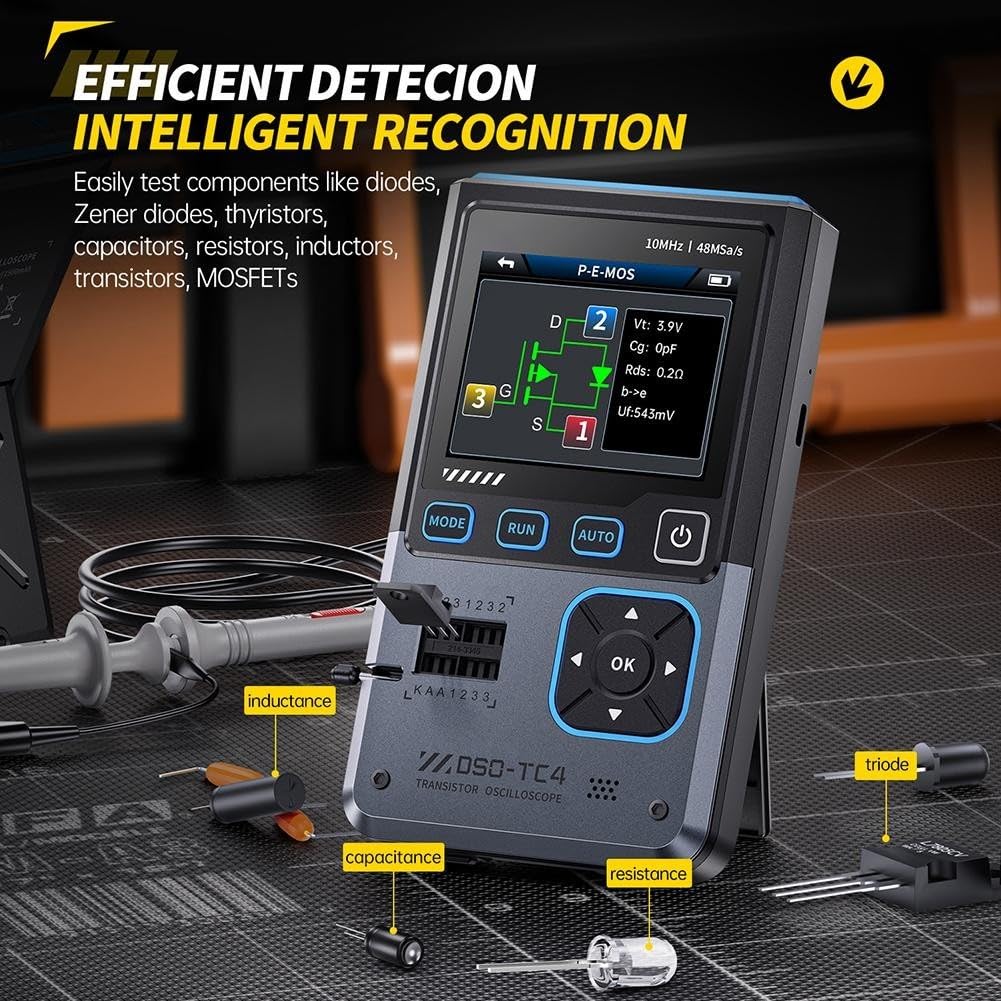

• [COMPREHENSIVE TESTING CAPABILITIES] This 3 in 1 digital component tester supports a wide range of semiconductor components including transistors, diodes, and FETs, allowing you to analyze their performance effortlessly.
• [HIGH SAMPLING RATE AND BANDWIDTH] With a real-time sampling rate of 48MSa/s and an analog bandwidth of 10MHz, this device ensures precise measurements for accurate results.
• [USER-FRIENDLY INTERFACE] The 8 inch color TFT screen provides clear visuals, making it easy to navigate through various testing functions and waveform outputs.
• [ADJUSTABLE OUTPUT PARAMETERS] Customize your testing experience with adjustable frequency, amplitude, and duty cycle settings to meet specific project requirements.
• [SIZING REMINDER] Please refer to your own size chart for optimal usage and compatibility.
